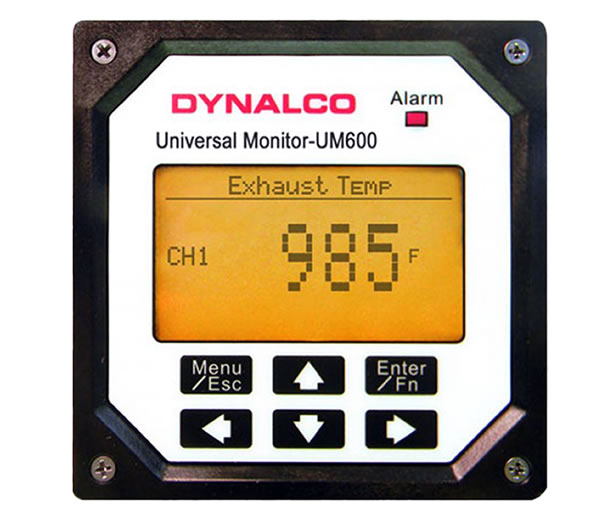

DYNALCO UM-600 Universal Monitor 6通道通用監視器
DYNALCO 6- Channel Universal Monitor 6通道通用顯示器
DYNALCO UM-600監控多達6個通道的模擬信號加上發動機轉速和小時數，并在超過用戶定義的設定點時提供警報和兩個不同的停機信號。這些報警和停機參數可以基于絕對值或差分值進行設置。它提供用戶自定義的圖形顯示，有3種不同的顯示模式。它還提供可通過Modbus連接或USB接口訪問的車載數據記錄。
UM-600 可監控多達 6 個通道的任何模擬信號以及發動機轉速和小時數，并在超過用戶定義的設定點時提供警報和兩個不同的停機信號。這些報警和關斷參數可以根據絕對值或差分值進行設置。它提供了一個用戶可定制的圖形顯示，具有3種不同的顯示模式。它還提供板載數據記錄，可通過 Modbus 連接或 USB 接口訪問。 UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provides an alarm and two different shutdown signal upon user-defined set-points being exceeded. These alarms and shutdown parameters can be set based on absolute or differential values.It offers a user customizable graphic display that has 3 different display modes. It also offers on board data logging that can be accessed via a Modbus connection or a USB interface.
UM-600 6- Channel Universal Monitor 6通道通用顯示器
6通道通用監視器
特征
接受熱電偶、4-20 mA 和 DCV 輸入
讀取通道 1 和 2、3 和 4、5 和 6 之間的差分
5位小時表功能
顯示發動機轉速
（2） 報警/關機輸出
背光液晶顯示屏
可通過前鍵盤完全編程
UM-600 Universal Monitor
Download Info:
UM-600 Manual
UM-600 Agency Approval

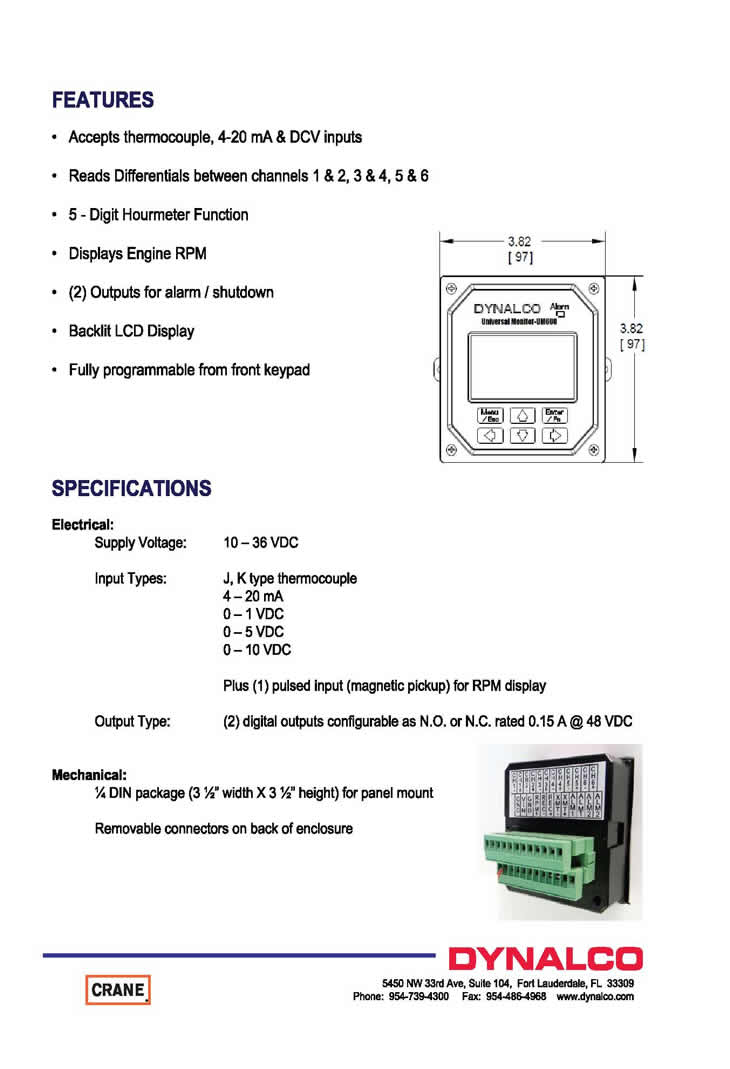

UM-600 Data Sheet
Product Code: UM-600
Software
Dynalco Catalyst Monitor and UM-600 6 -Channel Universal Monitor Software V1
Dynalco Catalyst Monitor and UM-600 6 -Channel Universal Monitor Software V2
Miscellaneous
Dynalco Rep Locator
Approvals
Dynalco UM-200/ UM-600/ Catalyst Monitor/Universal Meter/ Monitor CSA Approval
Datasheets
Dynalco UM-600 6 -Channel Universal Monitor Datasheet
Operating Manuals
Dynalco UM-600 6 -Channel Universal Monitor Manual
Details ?
軟件
Dynalco催化劑監控器和UM-600 6通道通用監控器軟件V1
Dynalco催化劑監控器和UM-600 6通道通用監控器軟件V2
雜
Dynalco Rep定位器
批準書
Dynalco UM-200 / UM-600 /催化劑監控器/通用儀表/監控器CSA認證
數據表
Dynalco UM-600 6通道通用顯示器數據表
操作手冊
Dynalco UM-600 6通道通用顯示器手冊
細節 ”
描述Description
UM-600可監視6個通道的任何模擬信號以及發動機轉速和小時數，并在超出用戶定義的設定點時提供警報和兩個不同的停機信號。這些警報和停機參數可以基于絕對值或差分值進行設置。The UM-600 monitors up to 6 channels of any analog signal plus engine speed and hours and provides an alarm and two different shutdown signal upon user-defined set-points being exceeded. These alarms and shutdown parameters can be set based on absolute or differential values.
它提供了具有3種不同顯示模式的用戶可定制圖形顯示。它還提供板載數據記錄，可以通過Modbus連接或USB接口訪問。
It offers a user customizable graphic display that has 3 different display modes. It also offers on board data logging that can be accessed via a Modbus connection or a USB interface.
特征
接受熱電偶，4-20 mA和DCV輸入
讀取通道1和2、3和4、5和6之間的差異
五位數小時表功能
顯示引擎RPM
（2）警報/關閉輸出
背光液晶顯示器
可從前鍵盤完全編程
Accepts thermocouple, 4-20 mA & DCV inputs
Reads Differentials between channels 1 & 2, 3 & 4, 5 & 6
5-Digit Hourmeter Function
Displays Engine RPM
(2) Outputs for alarm/shutdown
Backlit LCD Display
Fully programmable from front keypad
|
