Dynalco Pyrometers Thermocouple Input Gauges
高溫計熱電偶輸入儀表

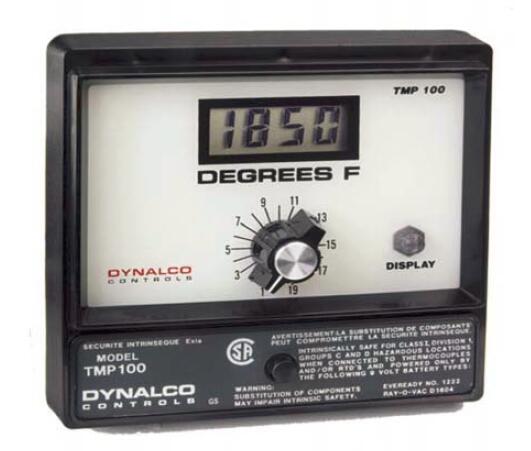

TMP-100 19-Channel Battery-Powered Pyrometers
TMP-100 19通道電池供電的高溫計
TMP-100 19通道電池供電的高溫計
TMP-100 19-Channel Battery-Powered Pyrometers
TMP-100 19通道電池供電的高溫計
Miscellaneous
Dynalco Rep Locator
Approvals
Dynalco TMP-100 19-Channel Battery-Powered Pyrometers Approval
Datasheets
Dynalco TMP-100 19-Channel Battery-Powered Pyrometers Datasheet
Details
Dynalco Rep定位器
批準書
Dynalco TMP-100 19通道電池供電高溫計獲得批準
數據表
Dynalco TMP-100 19通道電池供電高溫計數據表
細節
描述Description
19通道溫度指示器由兩節9伏堿性電池供電。接受相同型號的接地和不接地的熱電偶，具體取決于型號。某些版本接受所有100歐姆的鉑RTD。整體冷端補償。ABS型式認可。CSA認證：帶有批準的9伏電池的I類，Div 1，Grp C和D類。
19-channel temperature indicator is powered by two 9- volt alkaline batteries. Accepts grounded and ungrounded thermocouples of the same type depending on model. Some versions accept all 100 ohm platinum RTDs. Integral cold junction compensation. ABS type approval. CSA approval: Cls I, Div 1, Grp C & D with approved 9-volt batteries.
特征
1o分辨率的數字讀數。
本質安全。第三方批準。無需昂貴的危險外殼。
重型鍍金選擇器開關，使用壽命長，無故障。
集成的2極選擇器開關允許使用接地或不接地的熱電偶。
不需要外部直流或交流電源。
適合其他常用高溫計的現有切口和安裝孔。
不需要補償導線長度或?qū)Ь�電阻；使用便宜的小規格熱電偶延長線，節省成本和空間。
完全密封；堅固的結構。
讀數不受電源線噪聲和尖峰的影響（無線路連接）。
Digital readout with 1o resolution.
Intrinsically safe. Third–party approved. No expensive hazardous enclosure required.
Heavily gold-plated selector switch for long life, trouble-free operation.
Integral 2-pole selector switch permits using grounded or ungrounded thermocouples.
Requires no external dc or ac power.
Fits existing cutouts and mounting holes of other popular pyrometers.
Compensation for lead lengths or lead resistances not required; use inexpensive small gauge thermocouple extension wire and save cost and space.
Fully gasketed; rugged construction.
Readout unaffected by power line noise and spikes (no line connections).
|
