描述Description
TACHOMETER：帶存儲器轉速表的信號供電數字峰值速度。

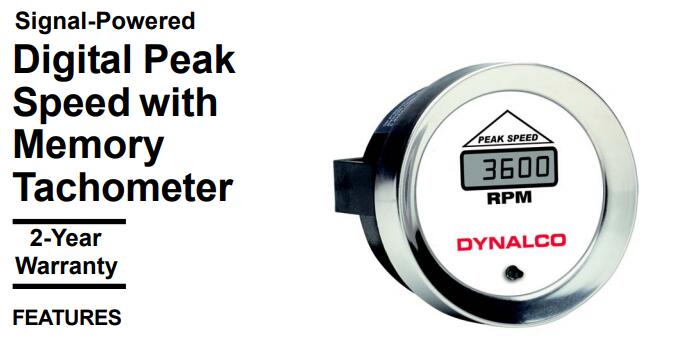

TACHOMETER: signal-powered, digital peak speed with memory tachometer.
SPH-100是固態，本質安全型轉速表，專為蒸汽輪機，渦輪增壓器和其他高速應用而設計。
The SPH-100 is a solid- state, intrinsically safe tachometer designed for steam turbines, turbochargers, and other high speed applications.
SPH-100是可現場配置的，具有高沖擊，振動和防潮性能。SPH-100將保留近的十個峰值速度讀數，并實時顯示時間/日期戳速度。配置了計時器功能以提供總運行時間。
The SPH-100 is field- configurable, high shock, vibration and moisture resistant. The SPH-100 will hold the last ten peak speed readings and show time/date stamps speed in real time. Configured with hourmeter functionality to provide total run times.
特征
專為蒸汽輪機，渦輪增壓器和其他高速應用而設計。
保留近十（10）個峰值速度讀數。
時間/日期戳實時實時。
提供總運行時間（計時器功能）。
電磁拾波器產生的信號和功率。
CSA批準，適用于I，1類，A，B，C，D組。
可現場配置。
1 RPM分辨率
高沖擊，振動和防潮性能。
標準SAE外殼尺寸適合3-3 / 8英寸（86毫米）開口的面板。
墊片和防潮。
Designed for steam turbines, turbochargers, and other high speed applications.
Holds last ten (10) peak speed readings.
Time/date stamps speed in real time.
Provides total run time (hourmeter function).
Signal and power derived from magnetic pickup.
CSA approval for Class I, Division 1, Groups A, B, C, D.
Field-configurable.
1 RPM resolution
High shock, vibration, and moisture resistant.
Standard SAE case size fits panels with 3-3/8 inch (86mm) openings.
Gasketed and spray-proof.
|
