Dynalco M180 Magnetic Pickup/Speed Sensor
Dynalco M180電磁傳感器/速度傳感器
Dynalco Magnetic Pickups Dynalco Speed Sensors磁性傳感器/速度傳感器
Dynalc Passive Variable Reluctance -Ordinary Area
無源可變磁阻傳感器-危險區域應用
Download Info:
Dynalco M180 Data Sheet
Dynalco M180 Agency Approval (CSA)
Dynalco M180 Agency Approval (ATEX)
Dynalco Product Code: M180
Description
Dynalco M180電磁感應速度傳感器有一個防爆外殼，非常適合在危險環境中使用。它適用于標準溫度、中速（300至500轉/分）、大齒輪（>2英寸直徑）應用。它有標準長度（1.500英寸）和5/8-18螺紋。This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is suited for use in standard temperature, mid speed (300 to 500 rpm), larger gear (>2 inch diam) applications. It has a standard reach (1.500 inches) and a 5/8-18 thread.
Dynalco M180 Magnetic Pickup/Speed Sensor 電磁感應速度傳感器
M180
M180 Magnetic Pickup/Speed Sensor
M180
M180 Magnetic Pickup/Speed Sensor
5/8-18 x 1.5" - 30" Leads
Passive (Variable Reluctance) - Hazardous Area
High Sensitivity (min. Speed > 300 RPM)
Approvals
Dynalco CSA Approval for Intrinsically Safe and Non-Incendive Systems for Hazardous Locations
Dynalco M180/ M319 Magnetic Pickup/Speed Sensor ATEX Approval
Datasheets

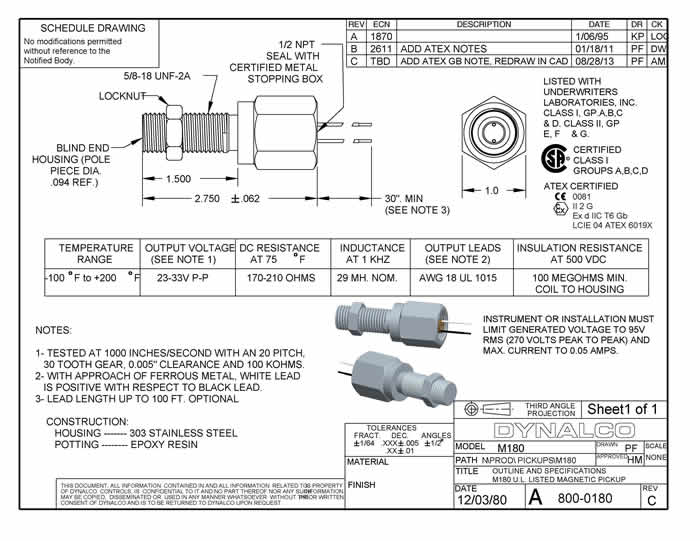

Dynalco M180 - 5/8-18 x 1.5" - 30" Leads Datasheet
Miscellaneous
Dynalco Rep Locator
Magnetic Pickup Look-up
Details
M180
M180電磁傳感器/速度傳感器
5 / 8-18 x 1.5“-30”引線
被動（可變磁阻）-危險區域
高靈敏度（速度> 300 RPM）
批準書
Dynalco CSA批準用于危險場所的本安和非易燃系統
Dynalco M180 / M319電磁傳感器/速度傳感器ATEX認證
數據表
Dynalco M180-5 / 8-18 x 1.5“-30”引線數據表
Dynalco Rep定位器
磁性傳感器
細節
5/8-18 x 1.5" - 30" Leads 5 / 8-18 x 1.5“-30”
Passive (Variable Reluctance) - Hazardous Area 被動（可變磁阻）引線-危險區域
High Sensitivity (min. Speed > 300 RPM) 高靈敏度（速度> 300 RPM）
該磁性傳感器具有防爆外殼，使其非常適合危險環境。它適用于標準溫度，中速（300至500 rpm），較大齒輪（> 2英寸直徑）的應用。它具有標準范圍（1.500英寸）和5 / 8-18螺紋。
This magnetic pickup has an explosion proof housing which makes it ideal for hazardous environments. It is suited for use in standard temperature, mid speed (300 to 500 rpm), larger gear (>2 inch diam) applications. It has a standard reach (1.500 inches) and a 5/8-18 thread.
大多數經過CSA認證的皮卡僅在作為特定認證系統或組件的一部分使用時才保留該批準。UL和某些CSA認可的傳感器可與儀器一起使用。
Most CSA-certified pickups retain that approval only when used as part of a specific certified system or assembly. UL and some CSA approved pickups may be used with any instrumentation.
|
