Dynalco Digital Tachometers
Dynalco數字轉速表
LST Series Low Speed DC-Powered Tachometers
LST系列 低速直流供電轉速表
LST系列 低速直流供電轉速表
LST Series Low Speed DC-Powered Tachometers
LST系列 低速直流供電轉速表
Datasheets
Dynalco LST Series Low Speed DC-Powered Tachometers Datasheet
Operating Manuals
Dynalco LST-100/LST-100L Low Speed DC-Powered Tachometer Manual
Miscellaneous
Dynalco Rep Locator
Details ?
數據表
Dynalco LST系列低速直流供電轉速表數據表
操作手冊
Dynalco LST-100 / LST-100L低速直流供電轉速表手冊
雜
Dynalco Rep定位器
細節 ”

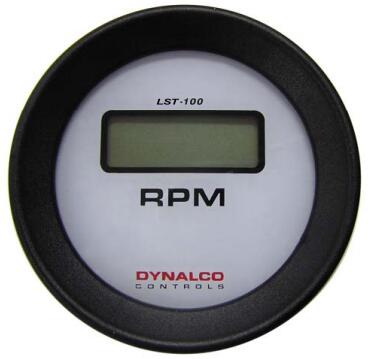

LST-100 Tachometer轉速表
LST-100專為顯示極低的速度而設計。它具有可現場選擇的脈沖率倍增器，可將信號脈沖率提高10或100倍。它是一款固態儀器，密封性強，適用于惡劣的室內和室外應用。它有一個大型的，不亮的4位數字顯示屏。閘門時間范圍：0.26至5.70秒。The LST-100 is specially designed to display very low speeds. It features a field- selectable pulse rate multiplier that increases signal pulse rate by a factor of 10 or 100. It is a solid- state instrument that is well sealed for rugged indoor and outdoor applications. It has a large, unlit, 4-digit display. Gate time range: 0.26 to 5.70 seconds.
LST-100L Tachometer轉速表
LST-100L是LST-100的發光版本。它是專門為顯示非常低的速度而設計的。它具有一個現場可選的脈沖率倍增器，可將信號脈沖率提高10或100倍。它是一款固態儀器，密封性強，適用于惡劣的室內和室外應用。它具有一個大型的，點亮的4位數字顯示屏。閘門時間范圍：0.26至5.70秒。The LST-100L is the lighted version of the LST-100. It is specially designed to display very low speeds. It features a field-selectable pulse rate multiplier that increases signal pulse rate by a factor of 10 or 100. It is a solid- state instrument that is well sealed for rugged indoor and outdoor applications. It has a large, lighted, 4-digit display. Gate time range: 0.26 to 5.70 seconds.
LST-108 Tachometer轉速表
LST-100專為顯示極低的速度而設計。它具有可現場選擇的脈沖率倍增器，可將信號脈沖率提高10或100倍。它是一款固態儀器，密封性強，適用于惡劣的室內和室外應用。它有一個大的，不亮的4位數字顯示屏。閘門時間范圍：0.13至2.85秒。The LST-100 is specially designed to display very low speeds. It features a field- selectable pulse rate multiplier that increases signal pulse rate by a factor of 10 or 100. It is a solid- state instrument that is well sealed for rugged indoor and outdoor applications. It has a large, unlighted, 4-digit display. Gate time range: 0.13 to 2.85 seconds.
LST-108L Tachometer轉速表
LST-108L是LST-108的發光版本。它是專門為顯示非常低的速度而設計的。它具有一個現場可選的脈沖率倍增器，可將信號脈沖率提高10或100倍。它是一款固態儀器，密封性強，適用于惡劣的室內和室外應用。它具有一個大型的，點亮的4位數字顯示屏。閘門時間范圍：0.13至2.85秒。The LST-108L is the lighted version of the LST-108. It is specially designed to display very low speeds. It features a field-selectable pulse rate multiplier that increases signal pulse rate by a factor of 10 or 100. It is a solid- state instrument that is well sealed for rugged indoor and outdoor applications. It has a large, lighted, 4-digit display. Gate time range: 0.13 to 2.85 seconds.
特征
標準SAE機箱適合帶有3.37英寸（8.6厘米）開口的發動機面板。
高度抗沖擊和抗振動。墊片和防潮。
通用：可以現場校準傳感器每轉任意數量的脈沖。
OEM使用的理想選擇�？膳c調速器和/或速度開關并聯。
對電噪聲的抵抗力強。
顯示對比度隨著環境光的增加而增加；室內和室外安裝的理想選擇。單位還提供帶燈版本（LST-100L或LST-108L）。
脈沖速率倍增器增加了輸入頻率，從而可以在更短的選通時間進行校準。
轉速表可以在出廠時配置為不同的輸入類型，例如TTL，CMOS，磁性傳感器等。在訂購時指定哪種類型。
Standard SAE case fits engine panels with 3.37 inch (8.6 centimeter) openings.
Highly shock and vibration resistant. Gasketed and spray-proof.
Universal: Can be field-calibrated for any number of pulses per revolution from the sensor.
Ideal for OEM use. Can be paralleled with governors and/or speed switches.
High immunity to electrical noise.
Display contrast increases with increasing ambient light; ideal for both indoor and outdoor installation. Units are also available in lighted versions (LST-100L or LST-108L).
The pulse rate multiplier increases input frequency which permits calibration at a much shorter gate time.
Tachometer can be factory configured for different input types i.e. TTL, CMOS, magnetic pickups, etc. Specify which type when ordering.
|
